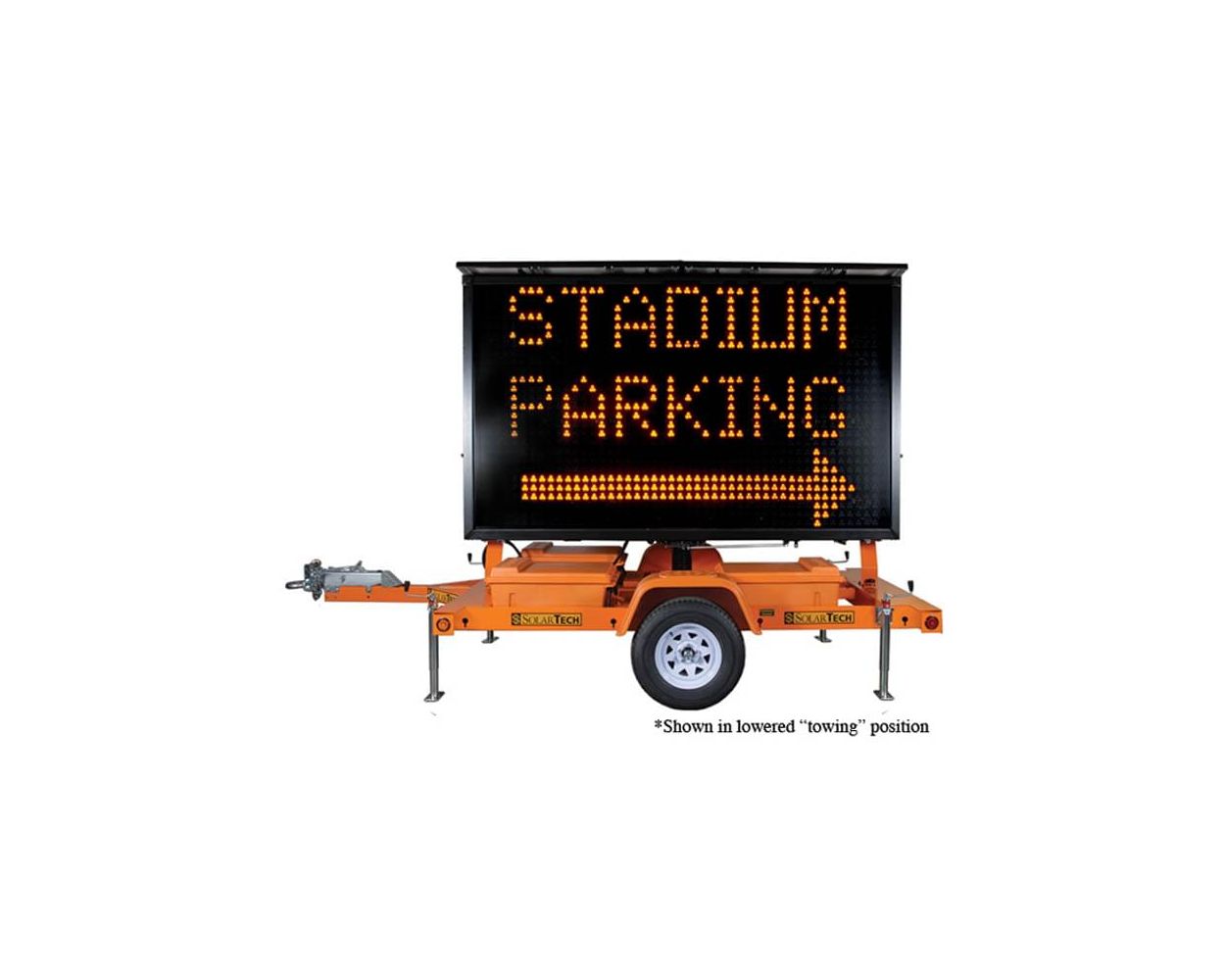

Dynamic Message Sign - Silent Messenger

Rating:
0%
$24,551.15
In Stock
SKU
STMSGR

The biggest bang for your buck!
126" W x 76" H Panel Size

Estimate Fees

Harness the power of the sun with this wonderfully built Dynamic Message Sign. It's perfect for limited-space applications and comes with a 5 year bumper to bumper warranty.  Although it does run on batteries, it's mostly solar powered!  Here are just some of the features this product has:

DISPLAY PANELS

  • Panel Size ........................................... 126” wide x 764” high (234 cm x 137 cm)
  • Character Height ................................13” to 68” (33 cm to 173 cm)
  • Matrix Size ........................................... 27 x 48 pixels(standard)
  • Pixel Pitch..............................................2.6" x 2.6" (66 mm x 66 mm)
  • Panel Construction ........................... All aluminum, modular construction
  • Panel Face ......................................... 3/16” polycarbonate, non-glare
  • Characters per Line ......................... Up to twelve (12)
  • Number of Lines ............................... Up to four (4)
  • Number of Fonts ............................... Twelve (12)
  • Graphics Capability .......................... Full matrix with full animation
  • Display Technology .......................... LED (amber, 592 mm)
  • Display Brightness ........................... >10,000 candela per square meter
  • Display Life Expectancy ................... 10 years typical
  • Viewing Angle .................................... 23° horizontal (minimum)
  • Lifting Mechanism..............................2,000 lb. capacity electro-hydraulic



TRAILER

  • Length Overall (operating)................180“ (457 cm)
  • Width Overall........................................92“ (234 cm)
  • Width Across Fenders.......................92“ (234 cm)
  • Height Traveling.................................103“ (262 cm)
  • Ground Clearance.............................13“ (33 cm) minimum
  • Height Operating................................162 “ (412 cm)
  • Weight...................................................2,400 lbs (1,089 kg) minimum to 2,960 lbs (1,343 kg) maximum
  • Coupler (Class III)..............................2" (50 mm) ball or 3" (76 mm) pintle ring
  • Axle/Suspension...............................Torq flex, independent



ENERGY SOURCE

  • Operating Voltage ............................ 12 volts DC (nominal)
  • Battery Type ........................................ 6 volt heavy-duty, deep cycle (GC-2)
  • No. of Batteries ................................. Four (4) standard lead acid (flooded)
  • Battery Bank Capacity ...................... 520 amp hours
  • Battery Status Indicator ................... Displays battery voltage, charging activity, and low battery condition
  • Solar Array Construction ................ Top-mounted solar panels in aluminum frame
  • Solar Array Power Output................ Standard 160 W (nominal)
  • Solar Charge Controller................... Automatic, temperature compensated
  • Auxiliary Battery Charger ................. 45 amp, 120 volt AC



MEGA-TECH CONTROL CONSOLE

  • Console Circuitry .............................. Ultra-low power solid state
  • Console Touchscreen ..................... Waterproof, backlit, full-color GUI, intuitive icon-driven, multi-lingual
  • Programming Software ................... Proprietary, field upgradable
  • Message Capacity ............................ Pre-programmed and user programmed greater than 250 each
  • Time-Date Control ............................ Real time clock/calendar (365 day)
  • Message Display Time ................... User-selectable (0.1 to 99 seconds)
  • Display Update Time ....................... Instantaneous
  • Non-volatile Memory ........................ 512 MB compact flash
  • Password Protection ....................... User selectable, multi-level
  • Operator Interface ............................ Easy-to-use icons (no manual required)
  • Connectivity ....................................... Network (wired or wireless), NTCIP compatible (ethernet and RS-232)
  • GPS.....................................................Integrated GPS receiver
