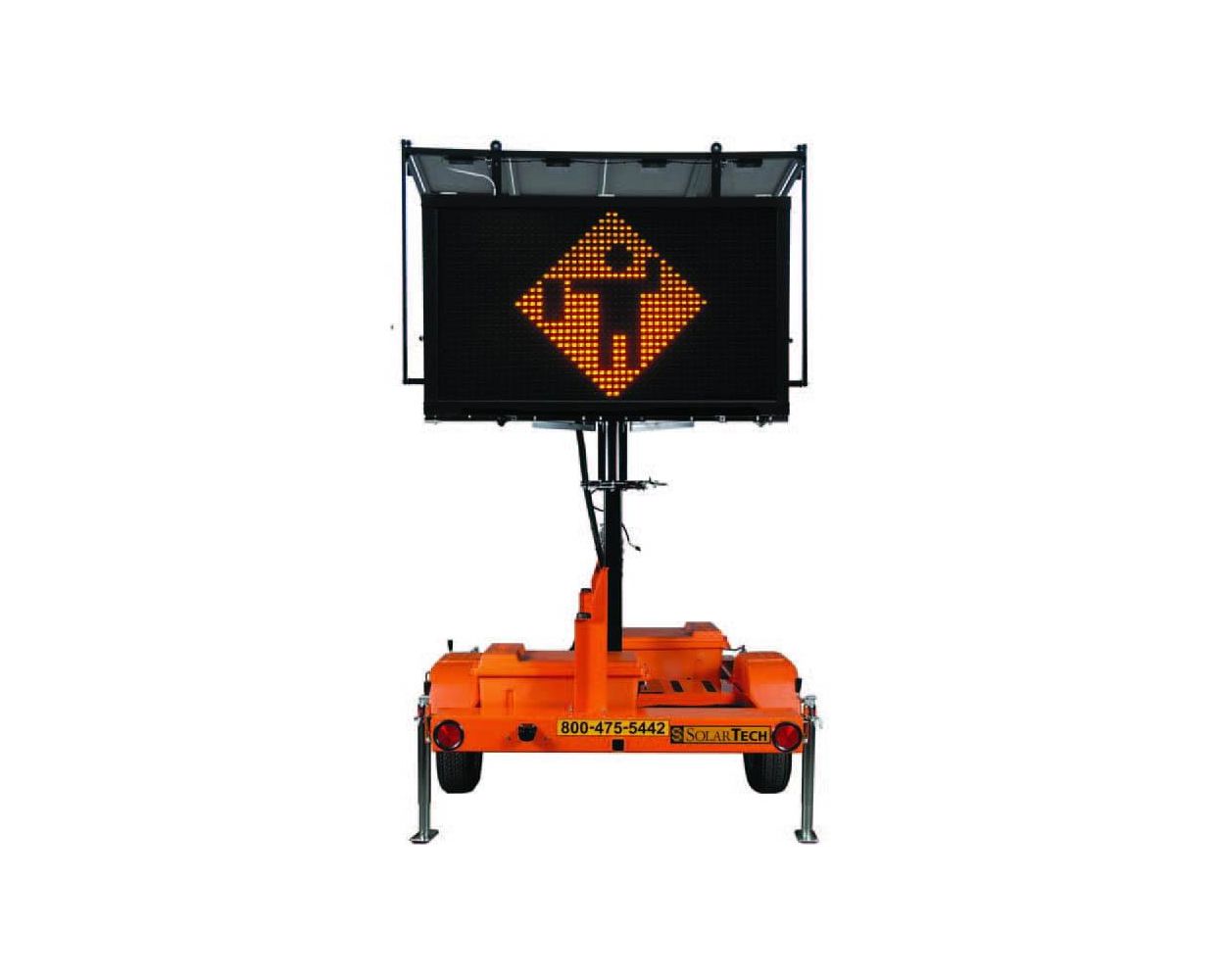

Dynamic Message Sign - Silent Messenger III

Lift and Rotate Trailer...perfect for limited space applications!
78" W x 46" H Panel Size

$15,710.00
In Stock
SKU
STMSGR3LR

Harness the power of the sun with this wonderfully built Dynamic Message Sign. It's perfect for limited-space applications and comes with a 5 year bumper to bumper warranty. It does run on batteries, but is mostly solar powered! Here are just some of the features this product has:

DISPLAY PANELS

  • Panel Size ........................................... 78” wide x 46” high (198 cm x 117 cm)
  • Pixel Size ............................................. 1.5” x 1.5” (38 mm x 38 mm)
  • Character Height ................................ 7.5” to 39” (19 cm to 99 cm)
  • Matrix Size ........................................... 27 x 48 pixels
  • Panel Construction ........................... All aluminum, modular construction
  • Panel Face ......................................... 3/16” polycarbonate, non-glare
  • Characters per Line ......................... Up to twelve (12)
  • Number of Lines ............................... Up to four (4)
  • Number of Fonts ............................... Twelve (12)
  • Graphics Capability .......................... Full matrix with full animation
  • Display Technology .......................... LED (amber, 592 mm)
  • Display Brightness ........................... >10,000 candela per square meter
  • Display Life Expectancy ................... 10 years typical
  • Viewing Angle .................................... 23° horizontal (minimum)



TRAILER

  • Length Overall (operating)................108“ (274 cm)
  • Length Overall (towing).....................152“ (386 cm)
  • Width Overall.......................................77“ (196 cm)
  • Width Across Fenders.......................77“ (196 cm)
  • Height Traveling.................................101“ (257 cm)
  • Ground Clearance.............................13“ (33 cm)
  • Height Operating................................142 “ (360 cm)
  • Weight of MB II Panel.........................1,622 lbs (907 kg) approx.
  • Lifting Mechanism............................ 1,000 lb. electric linear actuator
  • Axle/Suspension................................Torq flex, independent



ENERGY SOURCE

  • Operating Voltage ............................ 12 volts DC (nominal)
  • Battery Type ........................................ 6 volt heavy-duty, deep cycle (GC-2)
  • No. of Batteries ................................. Four (4) standard lead acid (flooded)
  • Battery Bank Capacity ...................... 260 amp hours
  • Battery Status Indicator ................... Displays battery voltage, charging activity, and low battery condition
  • Solar Array Construction ................ Top-mounted solar panels in aluminum frame
  • Solar Array Power Output................ Standard 160 W (nominal)
  • Solar Charge Controller................... Automatic, temperature compensated
  • Auxiliary Battery Charger ................. 45 amp, 120 volt AC



MEGA-TECH CONTROL CONSOLE

  • Console Circuitry .............................. Ultra-low power solid state
  • Console Touchscreen ..................... Waterproof, backlit, full-color GUI, intuitive icon-driven, multi-lingual
  • Programming Software ................... Proprietary, field upgradable
  • Message Capacity ............................ Pre-programmed and user programmed greater than 250 each
  • Time-Date Control ............................ Real time clock/calendar (365 day)
  • Message Display Time ................... User-selectable (0.1 to 99 seconds)
  • Display Update Time ....................... Instantaneous
  • Non-volatile Memory ........................ 512 MB compact flash
  • Password Protection ....................... User selectable, multi-level
  • Operator Interface ............................ Easy-to-use icons (no manual required)
  • Connectivity ....................................... Network (wired or wireless), NTCIP compatible
